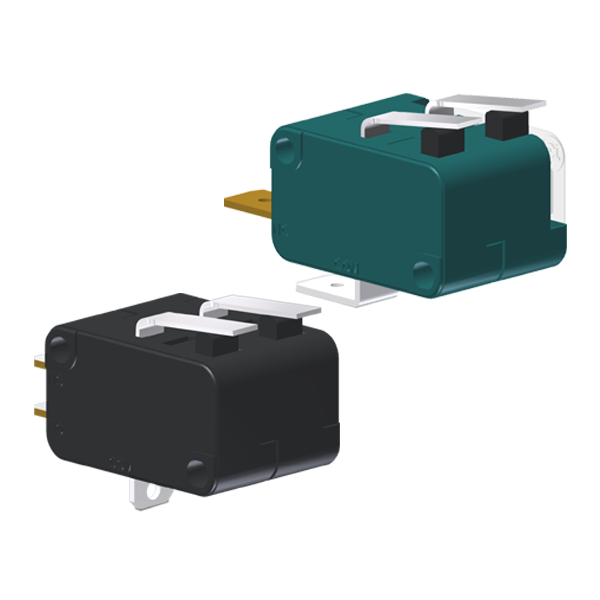

MVD Series
Doble Miniature Switch
Technical summary
- Miniature Double Microswitch _x000D_ Doble microswitches with independent actuators _x000D_ Reinforced thermoplastic enclosure, UL 94 V-0_x000D_
- Models with or without positive opening of the NC contact (IEC 60947-5-1) _x000D_ Snap-action models: _x000D_ . circuit rated up to 15 A at 250 Vac _x000D_ . wide range of actuators _x000D_ .
- 1NO+1NC, NO only or NC only circuit _x000D_ . operating force options _x000D_ Slow-action models: _x000D_ . circuit rated up to 3 A at 240 Vac _x000D_ .
- 1NC circuit _x000D_ Faston and solder terminals _x000D_ Mounting according to DIN 41635 Form A
Products in the MVD Series
Choose the ideal SKU for your application.
Didn't find the product you need?
Talk to us
Showing 2 products in the series.
